KLT-12B is a 8" square-panel wall exhaust fan delivering 380 m³/h at 38 dB. 250×250 mm front panel with a Φ100 duct outlet — sized for larger bathrooms, utility rooms and small kitchens.
| Parameter | Value |
|---|---|
| Model | KLT-12B 8" |
| Panel size (front plate) | 250×250 mm |
| Install size (wall cut-out) | 205×205 mm |
| Outlet diameter | Φ100 mm |
| Voltage / frequency | 220/50 Hz (110 V / 60 Hz on OEM request) |
| Power | 30 W |
| Airflow | 380 m³/h |
| Speed | 1200 r/min |
| Noise | 38 dB |
| Packing | 9 pcs/ctn |
| Volume per carton | 0.119 m³ |
| Gross / net weight | 12.8 kg / 11.8 kg per carton |
The KLT-12B moves 380 m³/h through a 250×250 mm square front panel and a Φ100 mm round outlet. Its 30 W motor runs at 1200 r/min with a measured noise level of 38 dB, which keeps it comfortable for occupied rooms while still meeting the air-change rate for its size class.

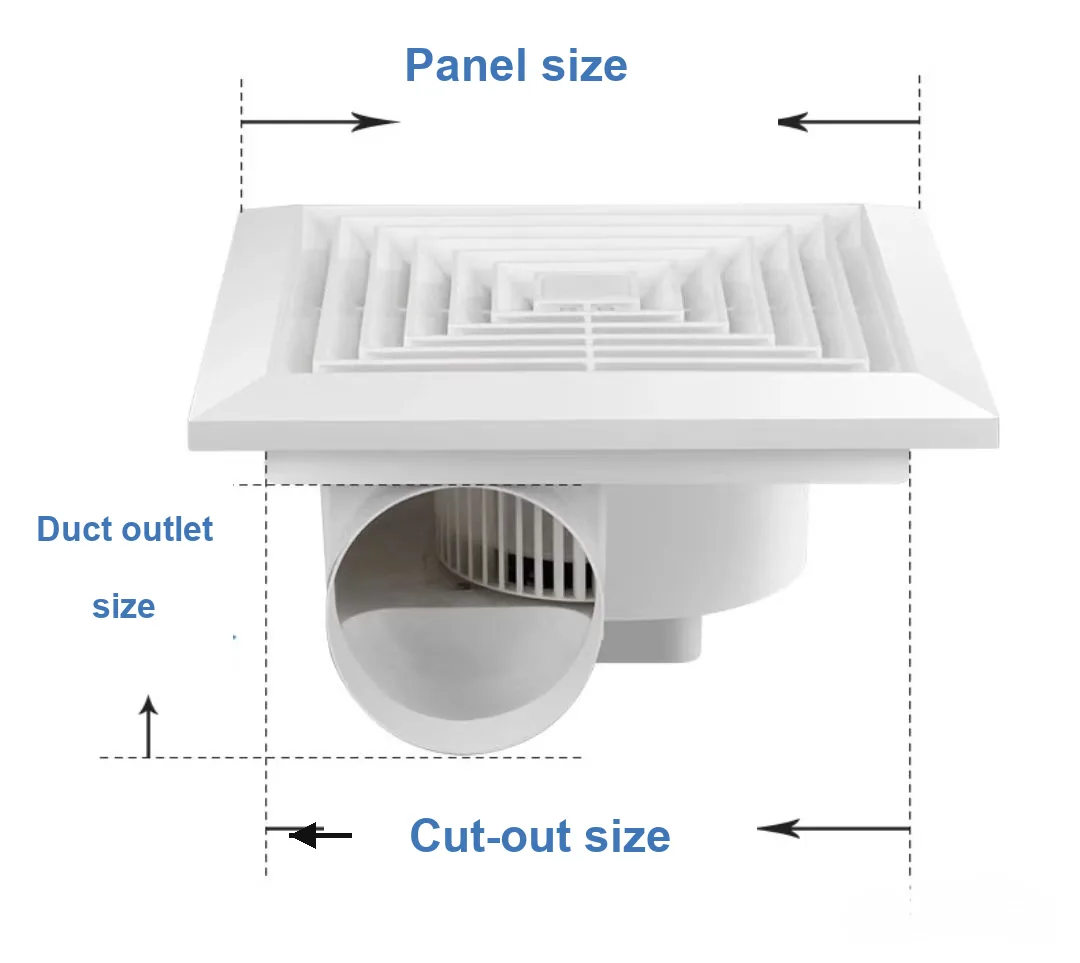

The front panel fits a standard 205×205 mm wall cut-out, and the outlet connects directly to Φ100 mm PVC duct or flexible hose without an adaptor. An integrated gravity auto-shutter closes when the fan stops, sealing the wall opening against dust, insects and back-draft.
For a 2.5 m ceiling and 10 air changes per hour, KLT-12B is the right size for a room of roughly 12–15 m². Rooms with a long duct run, high occupancy or heat load should step up one model — see the selection guidance on the KLT series overview.
KLT-12B price varies with voltage, colour, panel printing and order quantity. Indicative range published above; send your target quantity and destination port — we return a formal FOB/CIF quote within 24 hours.
MOQ is 100 pcs per shipment, with 9 pcs/ctn. Custom voltage, panel colour and private-label printing are available on OEM orders. Mixed-size containers are accepted.
Last updated: September 10, 2026
KLT-12B is highlighted. All models share the same motor family, auto-shutter and 220 V / 50 Hz platform.
| Model | Panel Size | Install Size | Outlet | Voltage | Power | Airflow | Speed | Noise | Pcs/Ctn | CBM | G.W. | N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (V/Hz) | (W) | (m³/h) | (r/min) | (dB) | (pcs) | (m³) | (Kg/Ctn) | (Kg/Ctn) | |
| KLT-10B 6" | 200×200 | 160×160 | Φ85 | 220/50 | 30 W | 150 m³/h | 1200 r/min | 35 dB | 20 pcs/ctn | 0.11 m³ | 20 kg | 19 kg |
| KLT-12B 8" | 250×250 | 205×205 | Φ100 | 220/50 | 30 W | 380 m³/h | 1200 r/min | 38 dB | 9 pcs/ctn | 0.119 m³ | 12.8 kg | 11.8 kg |
| KLT-16B 9" | 280×280 | 225×225 | Φ100 | 220/50 | 40 W | 396 m³/h | 1100 r/min | 40 dB | 9 pcs/ctn | 0.15 m³ | 15.6 kg | 14.6 kg |
| KLT-18B 10" | 310×310 | 245×245 | Φ100 | 220/50 | 40 W | 432 m³/h | 1130 r/min | 42 dB | 8 pcs/ctn | 0.168 m³ | 17.5 kg | 16.5 kg |
| KLT-20B 12" | 340×340 | 290×290 | Φ100 | 220/50 | 80 W | 792 m³/h | 1100 r/min | 45 dB | 6 pcs/ctn | 0.145 m³ | 15.3 kg | 14.3 kg |
| KLT-25B 14" | 400×400 | 330×330 | Φ150 | 220/50 | 120 W | 1500 m³/h | 650 r/min | 48 dB | 4 pcs/ctn | 0.146 m³ | 13.5 kg | 12.8 kg |
| KLT-30B 18" | 600×600 | 480×480 | Φ150 | 220/50 | 120 W | 1800 m³/h | 685 r/min | 48 dB | 1 pcs/ctn | 0.109 m³ | 6.3 kg | 5.7 kg |
